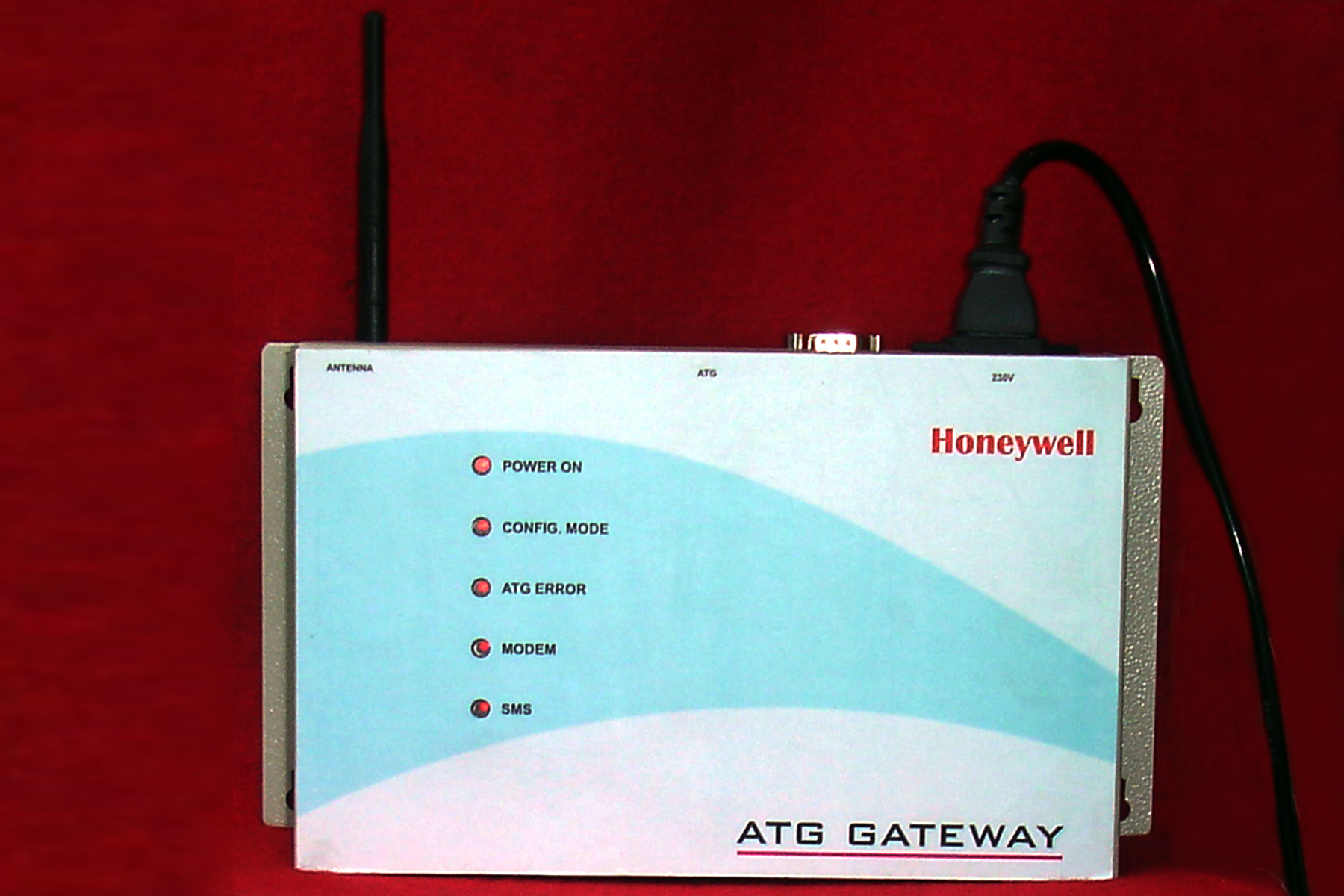

GATEWAY ACON AG 01 :


A Gateway is a media using which a remote instrument can be communicated irrespective of the communication standard of the remote instrument. A Gateway has intelligence in it to converter the proprietary data to standard protocol format. The gateway can be used for data acquisition and control from remote location. . This can be used as slave to slave modbus communication also.


For more deatils :

PROTOCOL CONVERTER ACON AG-02 :


ACON AG-02 is a device, which is used as a Protocol converter between any to serial devices. (Modbus RTU to Modbus ASCII)


For more deatils

Modbus RTU (Master)To Modbus ASCII (Slave) ACON AG-03 :


The model ACON E-02 is high speed RS 232 to RS 485 converter. It supports auto baud rate. It allows RS232 device to transmit data over 1.2 km distance to increase networking capability. The optical isolation protects one segment of your network from problems that arises on the other. The model ACON E-02 supports RS485- 2 /4 wires. (It requires no DIP switch setting just connect 2 wire or 4 wire, it will automatically detect configuration)


For more deatils :

EI-EBI INTERFACE :


EI_EBI Interface is a device, which is used as a Protocol converter between EBI (Scada) and EI Readers. EBI communicate in PCSC protocol whereas EI readers communicate in Smax protocol. EI EBI interface receives Query from EBI in PCSC protocol on COMA port and sends respective query to EI reader connected at COMB port in Smax protocol. The response received from EI reader is send to EBI.


For more deatils :

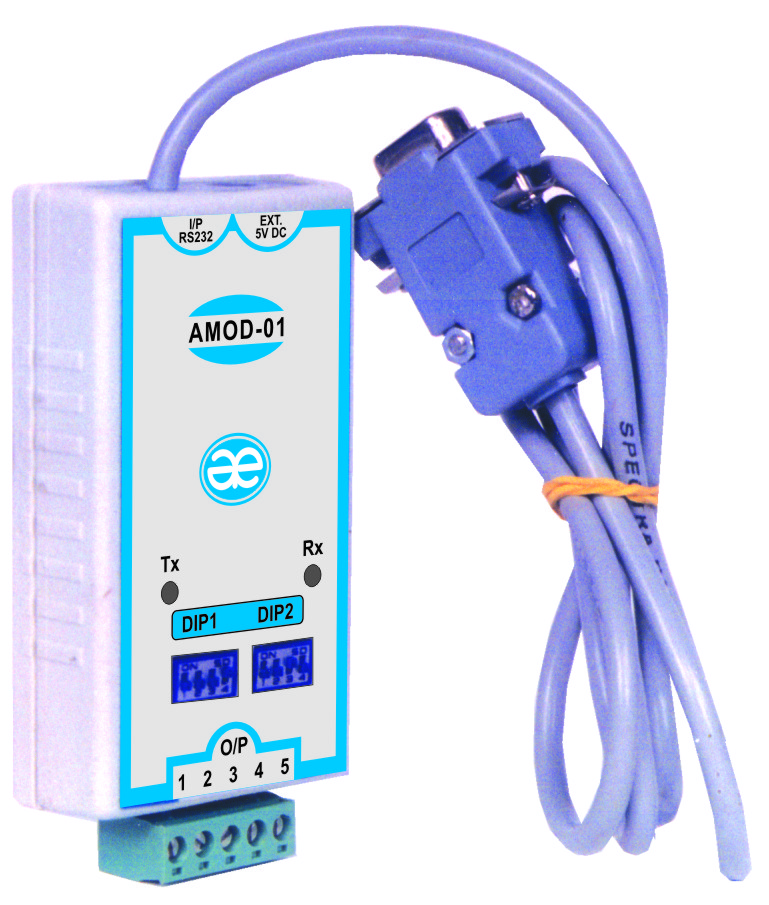

ANALOG TO SERIAL MODBUS CONVERTER ACONAMOD01 :


THE MODEL ACON AMOD-01 IS 4 TO 20 / 0 TO 10 V INPUT TO MODBUS CONVERTER.


For more deatils :

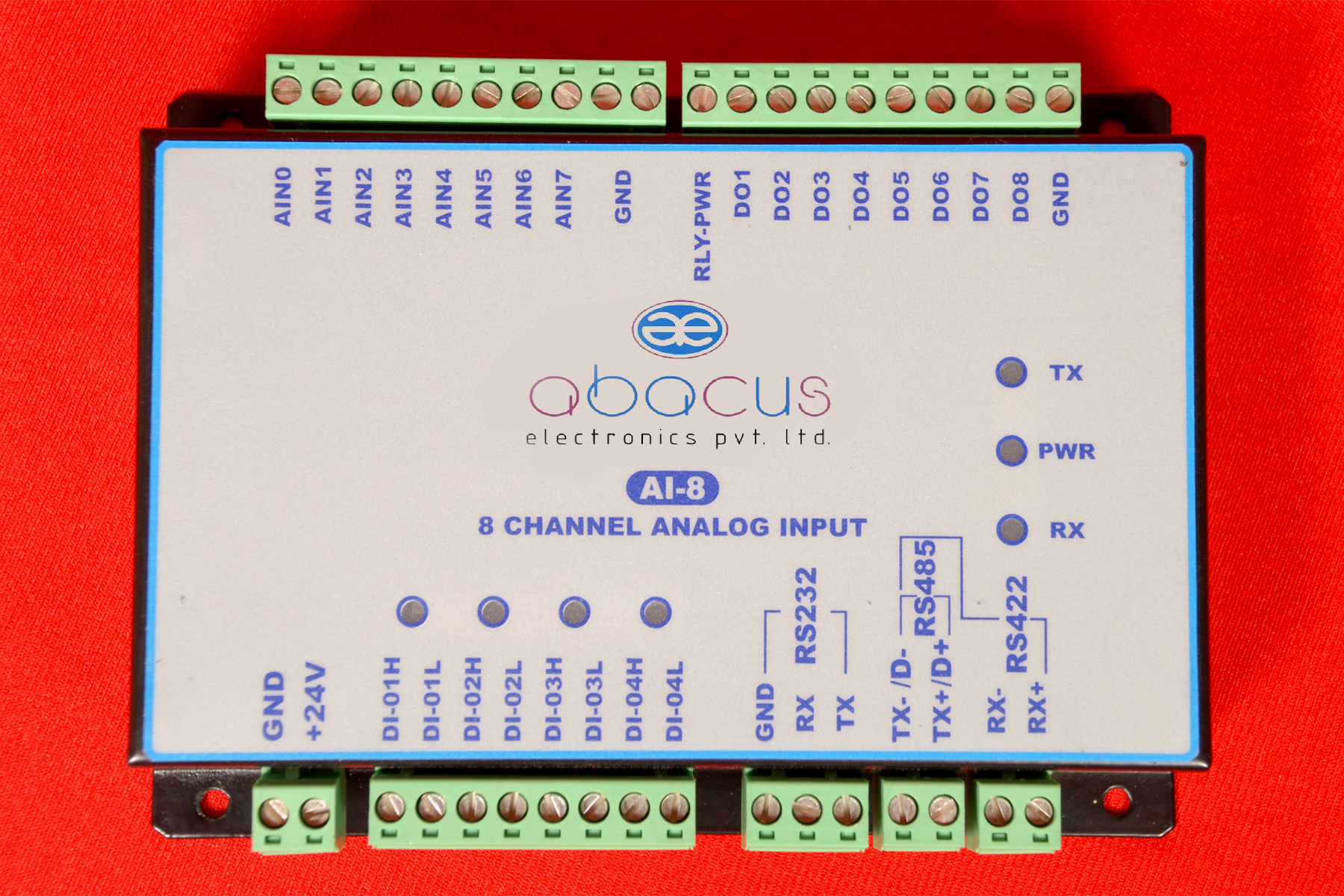

8 CHANNEL ANALOG INPUTS ACONAI08 :



For more deatils :
